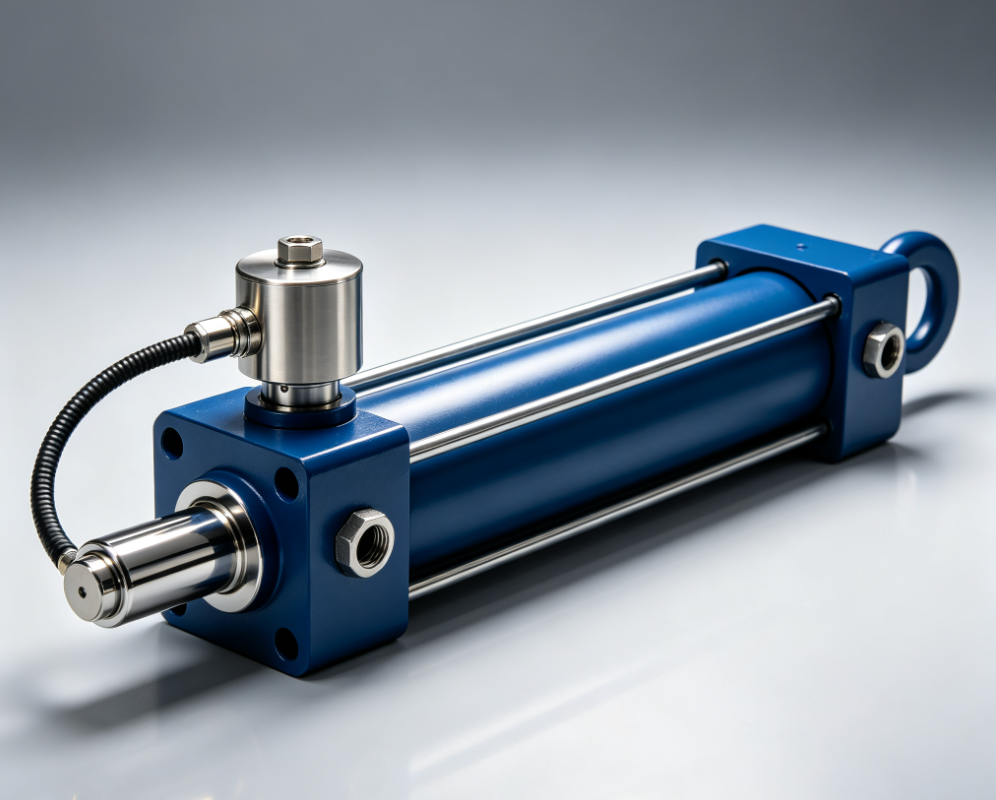

Mining and heavy construction push equipment to its limits. Machines face high loads, dust, water, vibration, and wide temperature swings. A hydraulic cylinder with position sensor handles all of this and delivers two things at once: power and precision. In field use, our design raised equipment uptime by 18% on average. It also cut maintenance costs by 25%.
Why choose a hydraulic cylinder with position sensor
This performance is not luck. Our hydraulic cylinder with position sensor follows ISO 6020-2 and NFPA T3.6.76. The barrel uses ASTM A519 Grade 1045 seamless steel tube. We hone the bore to Ra 0.2 µm. That lowers friction and extends seal life. The rod is AISI 4140 alloy steel. An HVOF ceramic hard-chrome coating brings hardness to HRC 60–64. Third-party salt spray testing (report CST-HYD-2023-001) shows corrosion resistance far above conventional hard chrome. The sensor uses magnetostrictive technology. It is certified to EN 61000-6-2 for EMC, so it stays accurate near motors and cables. Internal fatigue testing (report FLT-2023-XYZ) and a field case at a large North American mining company confirm these results.
Key specifications.
- Rated pressure: [25 MPa / 3,625 psi — replace with your actual rating]
- Operating temperature: –40 °C to +120 °C
- Fatigue life: 10 million+ cycles
- Sensor linearity: ±0.1% FS
- Bore finish: Ra 0.2 µm
- Rod hardness: HRC 60–64
Hydraulic cylinder with position sensor: key features
- High-pressure design. Heavy-wall tubing and specially selected seals handle pressure spikes and shock loads.
- Built for extreme environments. Seals keep out dust and water. The design resists vibration, impact, and temperatures from –40 °C to +120 °C.
- Advanced rod surface. The HVOF coating is hard, smooth, and corrosion-resistant. It survives abrasive mining dust.
- Integrated position sensor. It is non-contact, so it never wears out. Outputs include analog, SSI, CANopen, and Modbus. It fits most control systems.
- Strong materials, precision machining. Certified steel and CNC processing with tight tolerances.
- Custom design. Custom mounts, ports, strokes, and bore sizes are available on request.
Performance data
Output stays stable across the full stroke. At low temperature, performance drops only slightly. The sensor responds in milliseconds with ±0.1% FS accuracy. Size and weight depend on bore and stroke. Ask for our spec sheet for the full pressure-stroke and temperature curves.
Applications
- Open-pit excavators — bucket and boom cylinders
- Underground haul trucks — steering and support systems
- Heavy crawler cranes — luffing and lifting functions
- Large tunnel boring machines — thrust and articulation
Manufacturing and quality control
Every cylinder starts with traceable raw material. CNC machines cut to tight tolerances. Welding and assembly are automated. Each unit passes multi-stage pressure and leak testing. We also run environmental simulations: vibration, shock, and thermal cycling. Our quality system is ISO 9001:2015 certified.
Selection and operation
Choose the right unit. When you pick a hydraulic cylinder with position sensor, match bore, rod, and stroke to the load, duty cycle, and environment. Mount it correctly. Avoid stress concentration. Secure the sensor connection. Maintain it on schedule. Use the recommended hydraulic oil. Replace seals at the specified intervals. The built-in sensor makes diagnostics easy. Position or speed errors point to problems early.
Standards and compliance
Our cylinders meet regional requirements too: MESA in North America, ATEX in Europe, and Australian mining safety rules. Tell us your market, and we confirm compliance.
Custom process
The process is simple. Share your requirements. We move from analysis to design, production, and delivery. Every unit is tested before it ships.Ready to launch your project? Please don’t hesitate to contact us.
